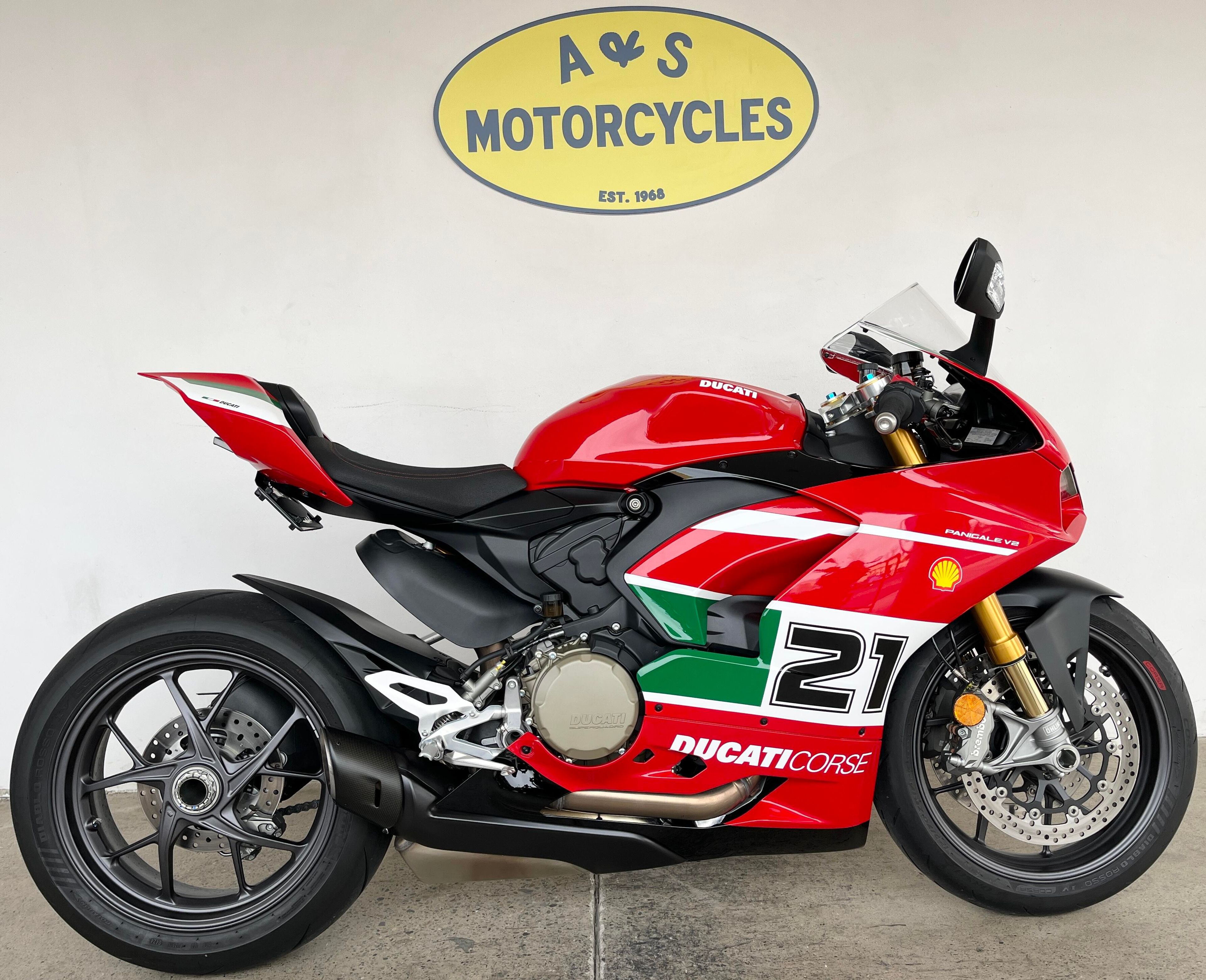

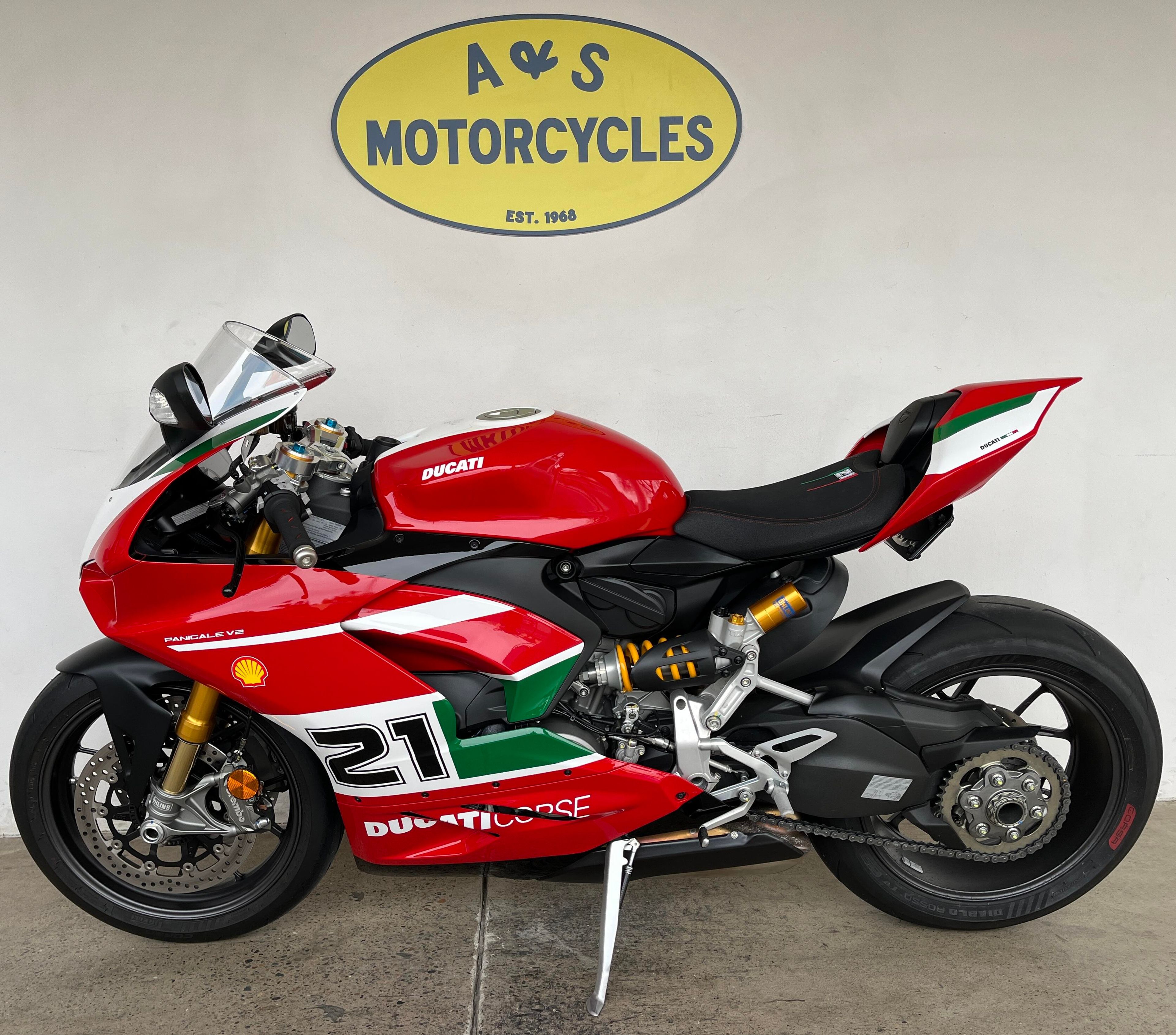

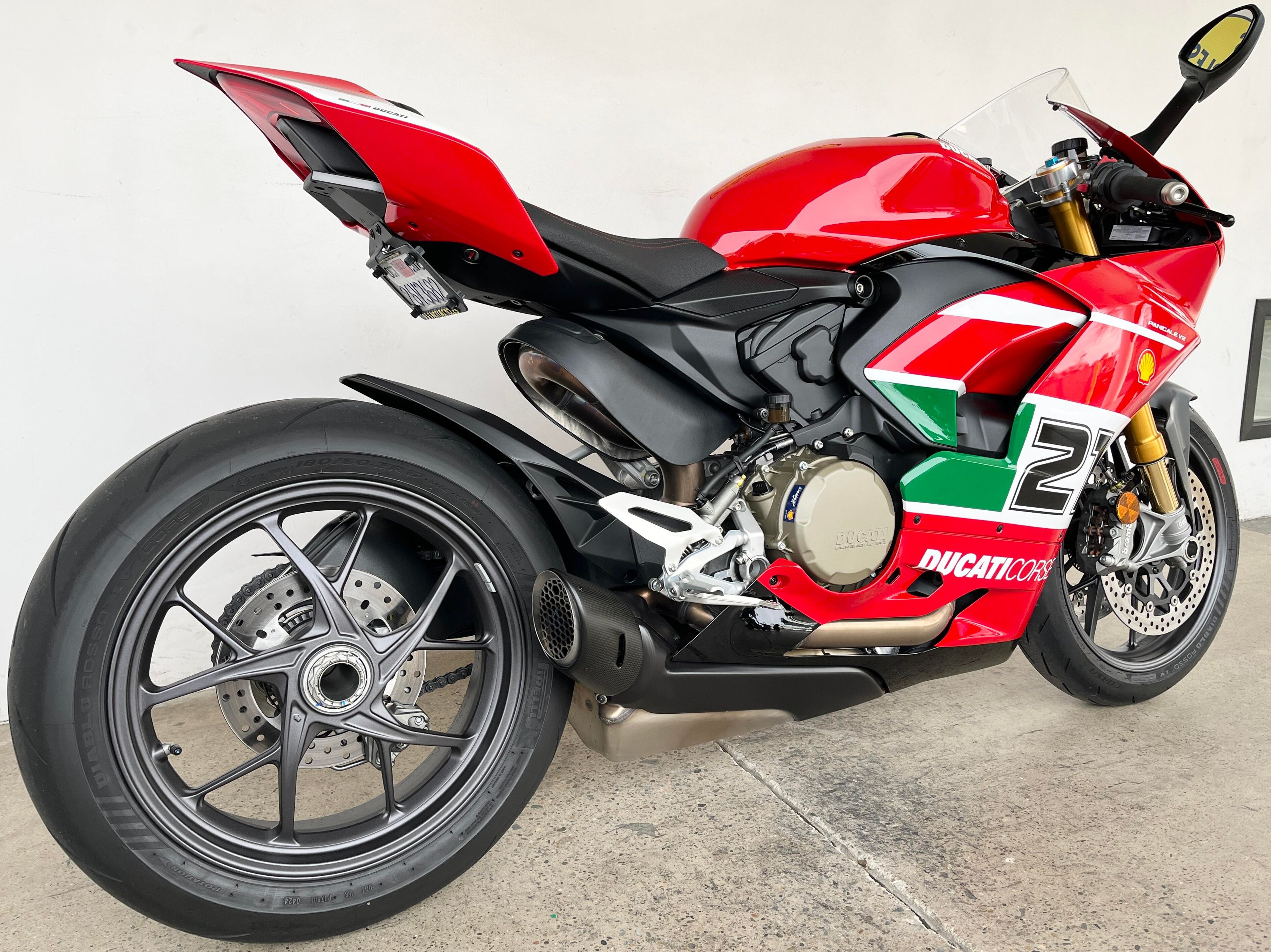

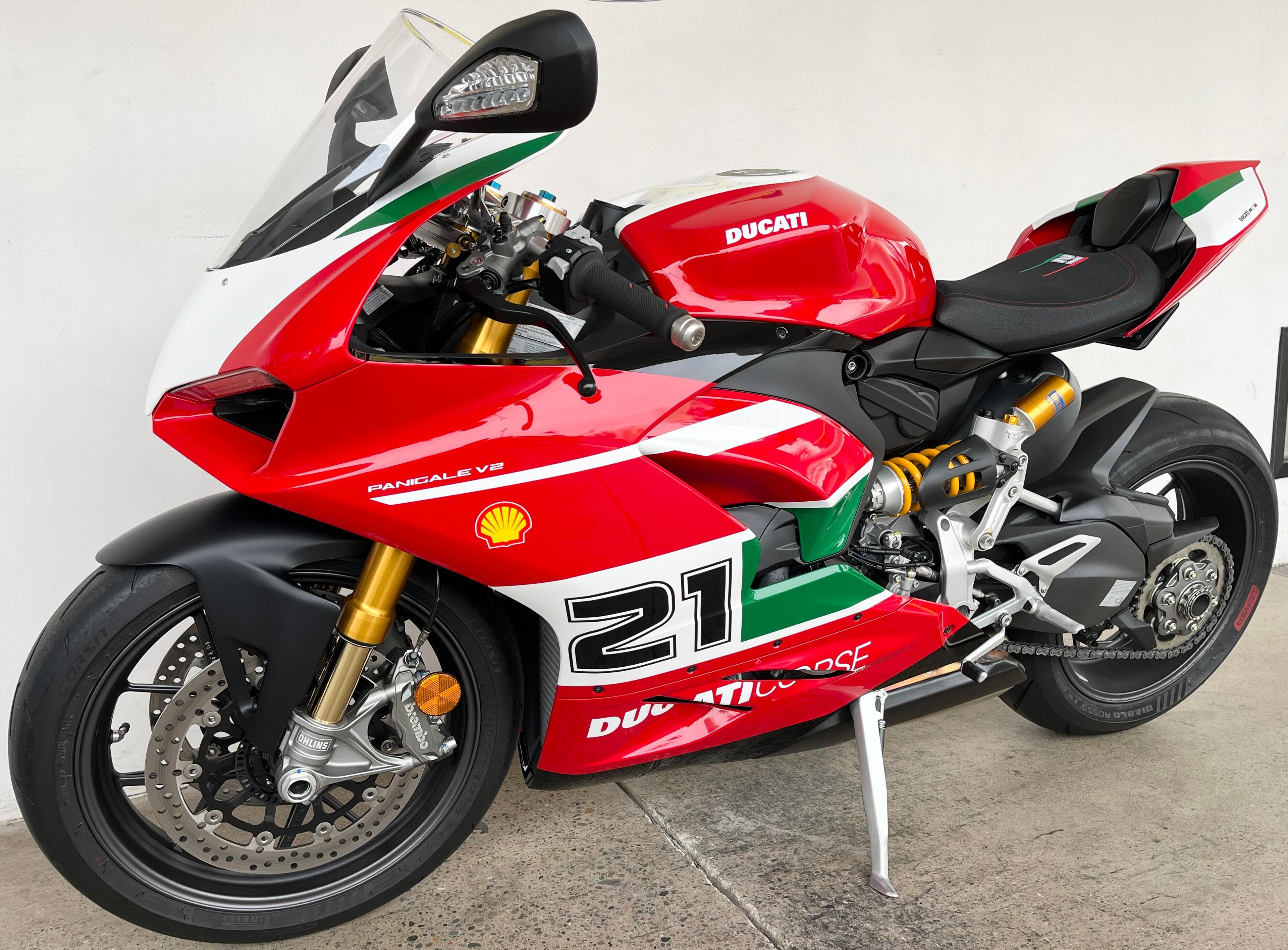

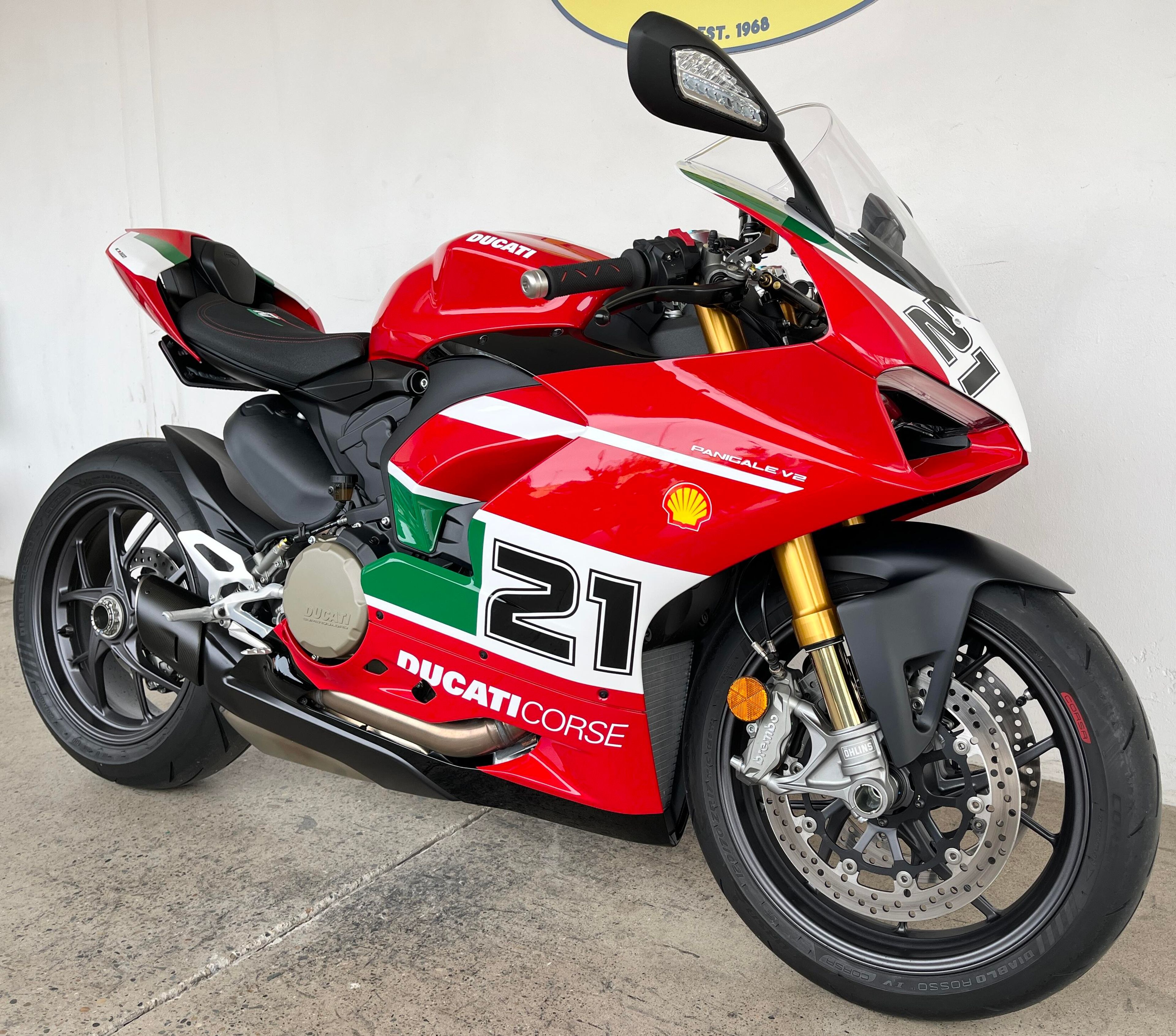

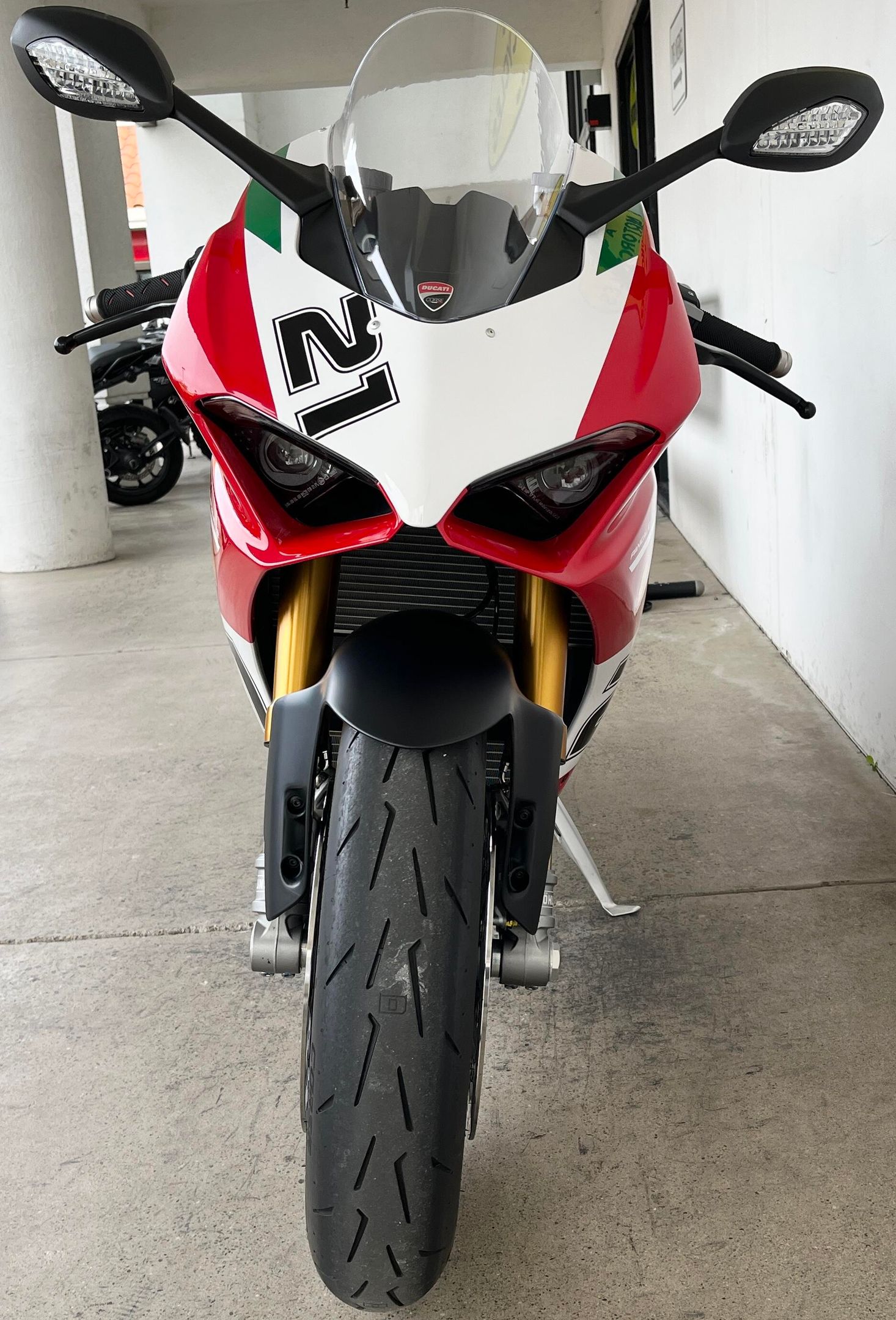

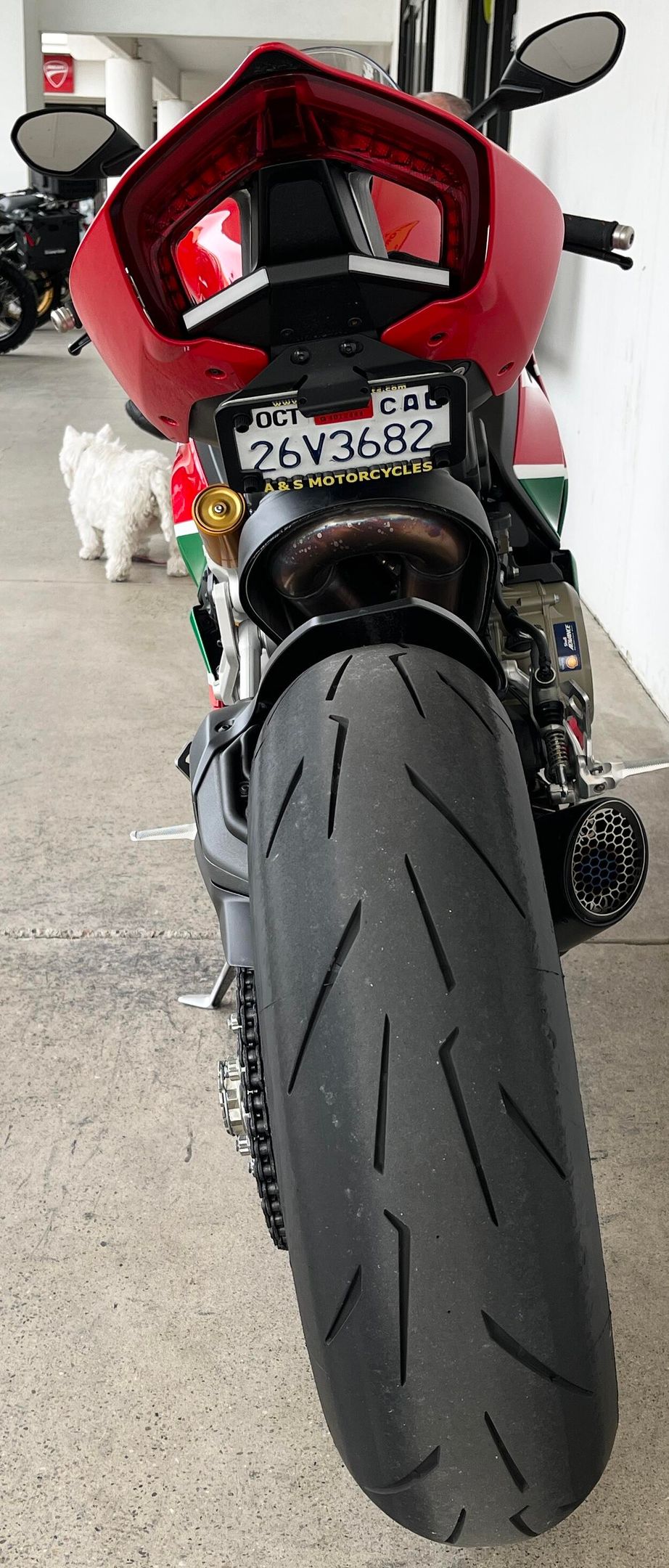

Used 2024 Ducati PANIGALE V2
Vehicle Details
- Stock #: D5200
- VIN: ZDMHAATWXRB015200

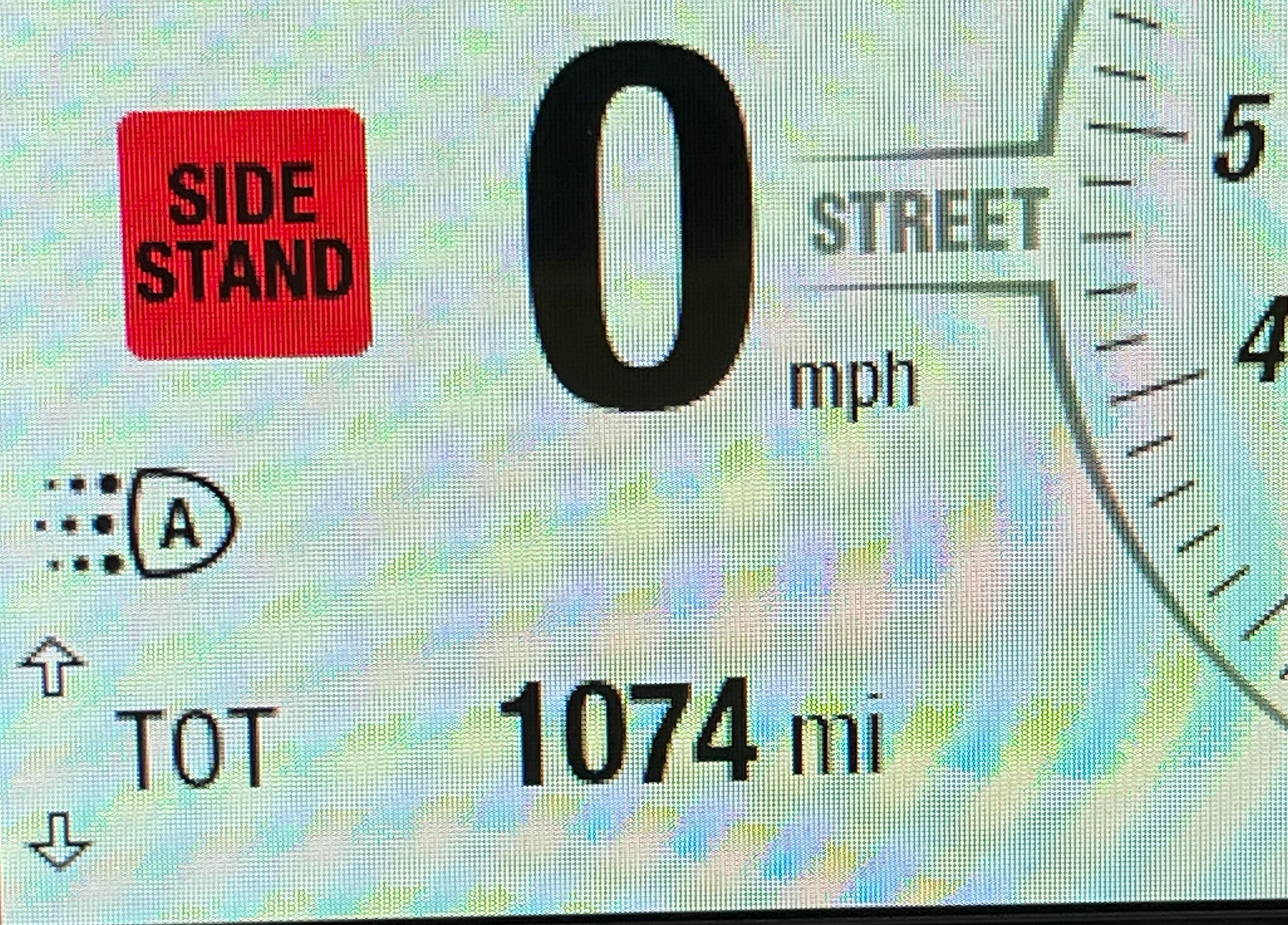

- Mileage: 1074
- Engine: Superquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
- Exterior Color: LIVERY
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.
Born to Celebrate
The Panigale V2 Bayliss 1st Championship 20th Anniversary celebrates one of the most successful riders of all time and the symbol of an entire community: Troy Bayliss. A special motorcycle, manufactured in a numbered series, the pure expression of Ducati sportsmanship and a tribute to a timeless passion.

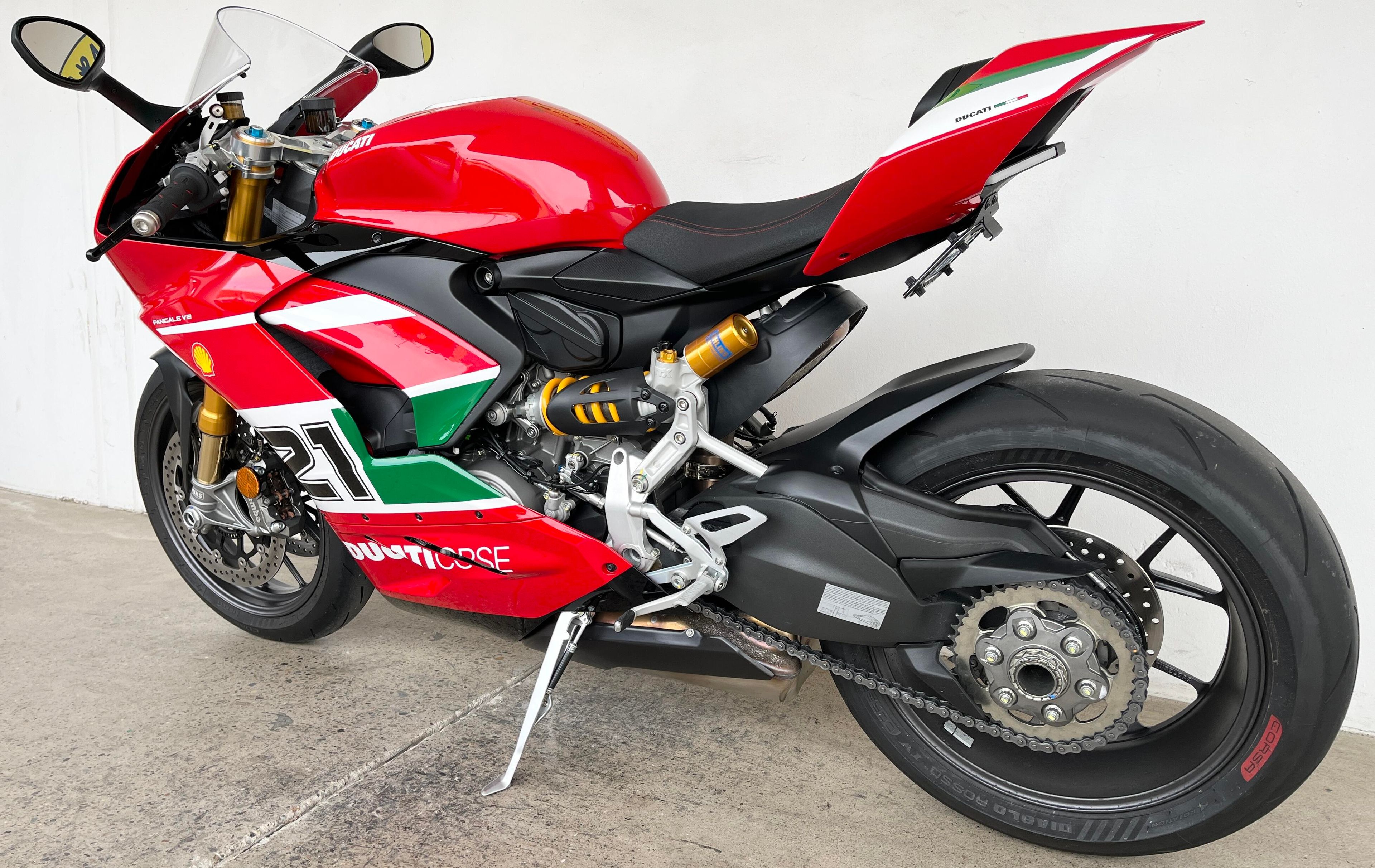

Based on the Panigale V2, this version is made unique by the special livery, inspired by the 996 R on which Bayliss won his very first world championship title in 2001, and by the prestigious Öhlins components, that bring the track performance of the Panigale V2 Bayliss 1st Championship 20th Anniversary to a whole new level.
Highlighted Features
- Injectors and inlet ducts: Like the Panigale V2, Performance enhancement largely stems from the new injectors (two per cylinder, one above and one below the butterfly, larger, and re-angled) and the new inlet ducts which, delivery rates remaining equal, lose less pressure than their predecessors, thus boosting intake efficiency. Oval throttle body dimensions remain unchanged with an equivalent diameter of 62 mm. Throttle bodies are controlled independently of each other via a full Ride by Wire system.
- Silencer: The new silencer has a new internal layout and, back pressure remaining equal, abates noise spikes more easily. This has led to a considerable reduction in silencer bulk. The new silencer also houses two larger. enhanced-impregnation catalytic converters that allow compliance with Euro 5 emissions standards.

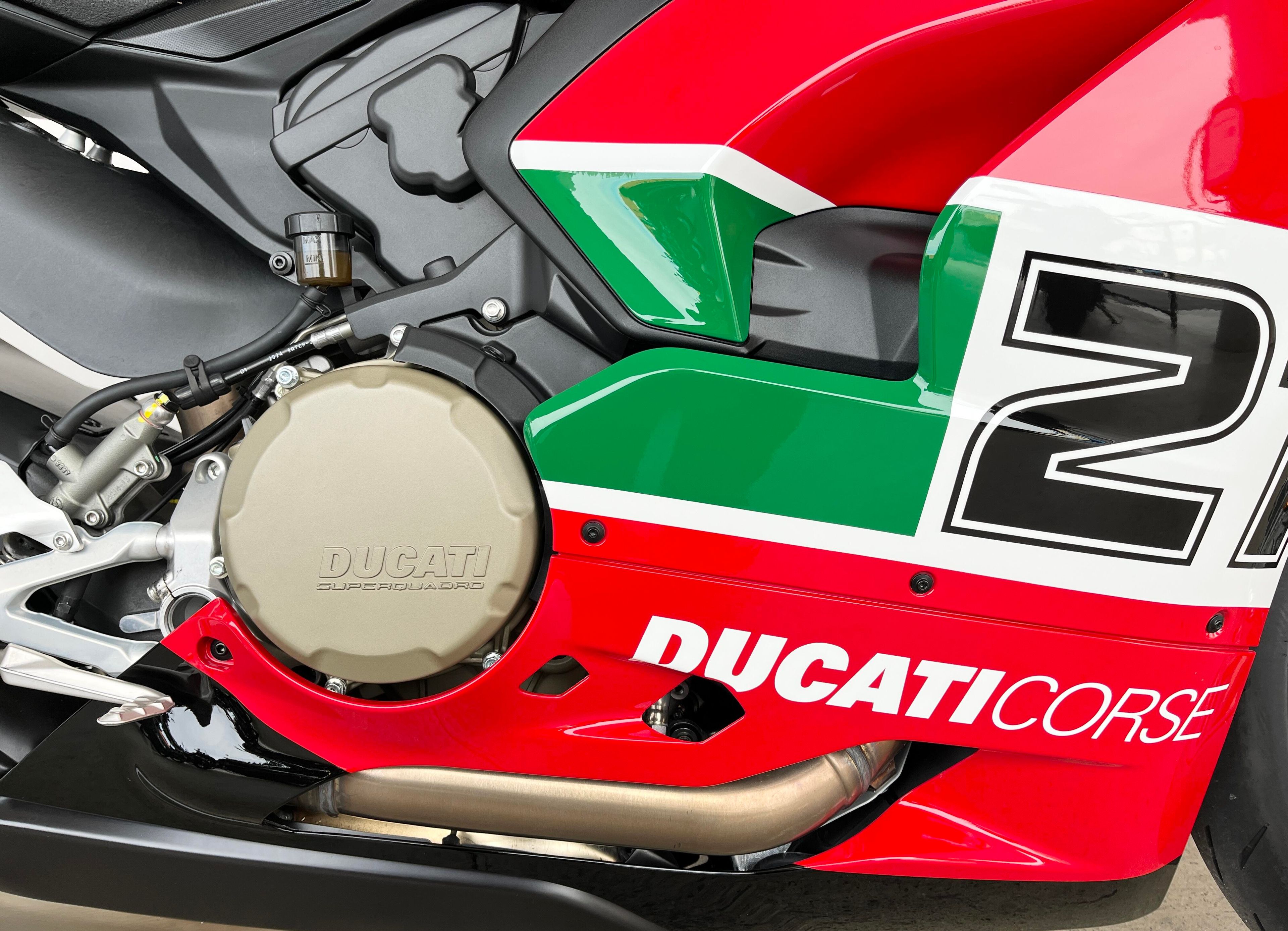

- 90° Cylinders: On the Panigale V2 the engine acts as a stressed member of the frame. Set 90° apart, the cylinders are banked rearwards around the crankshaft axis, resulting in a 21° angle between front cylinder and horizontal plane. The two cylinder heads and aluminium top covers feature a ribbed design to reduce mechanical noise. The crankcases are vacuum die-cast using Vacural® technology to optimise weight saving and ensure consistent wall thickness and increased strength. Crankcase cover, clutch cover and sump are all made of die-cast aluminium.
- Transmission: Transmission features a six-speed gearbox with the Ducati Quick Shift up/down EVO 2 system and an oil bathed clutch. The latter has an anti-patter and progressive self-servo mechanism that compresses the friction plates when under drive from the engine without any extra effort required from the rider to release the clutch.
ENGINE
- Type: Superquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
- Displacement: 955 cc
- Bore x Stroke: 100 x 60,8 mm
- Compression Ratio: 12.5:1
- Power: 114 kW (155 hp) @ 10.750 rpm
- Torque: 104 Nm (76,7 lb-ft) @ 9.000 rpm
- Fuel Injection: Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies
- Exhaust: 2-1-2-1 system, with 2 catalytic converters and 2 lambda probes
TRANSMISSION
- Gearbox: 6 speed with Ducati Quick Shift (DQS) up/down
- Primary drive: Straight cut gears; Ratio 1.77:1
- Ratio: 1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
- Final drive: Chain; Front sprocket 15; Rear sprocket 43
- Clutch: Hydraulically controlled slipper and self-servo wet multiplate clutch
CHASSIS
- Frame: Monocoque Aluminium
- Front suspension: Fully adjustable Ø 48 mm usd Öhlins fork with TiN treatment
- Front Wheel: 5-spokes light alloy 3.50" x 17"

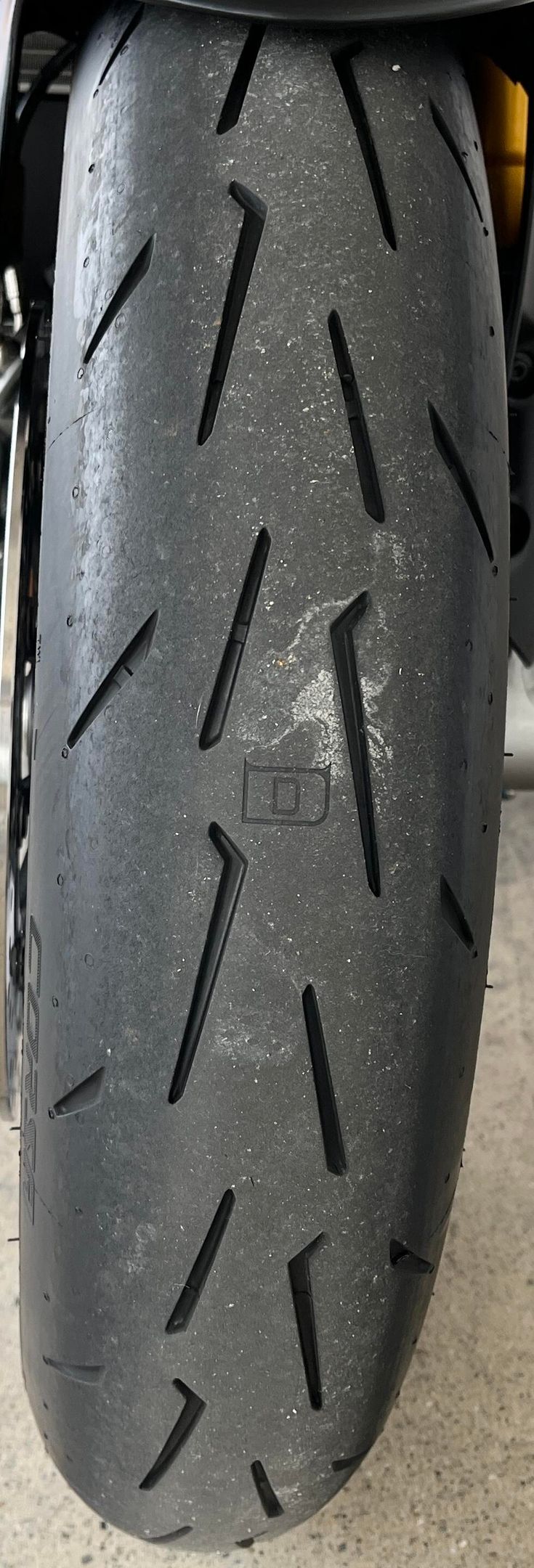

- Front Tyre: Pirelli Diablo Rosso IV Corsa 120/70 ZR17
- Rear suspension: Fully adjustable Öhlins monoshock. Aluminum single-sided swingarm
- Rear Wheel: 5-spokes light alloy 5,50” x 17”

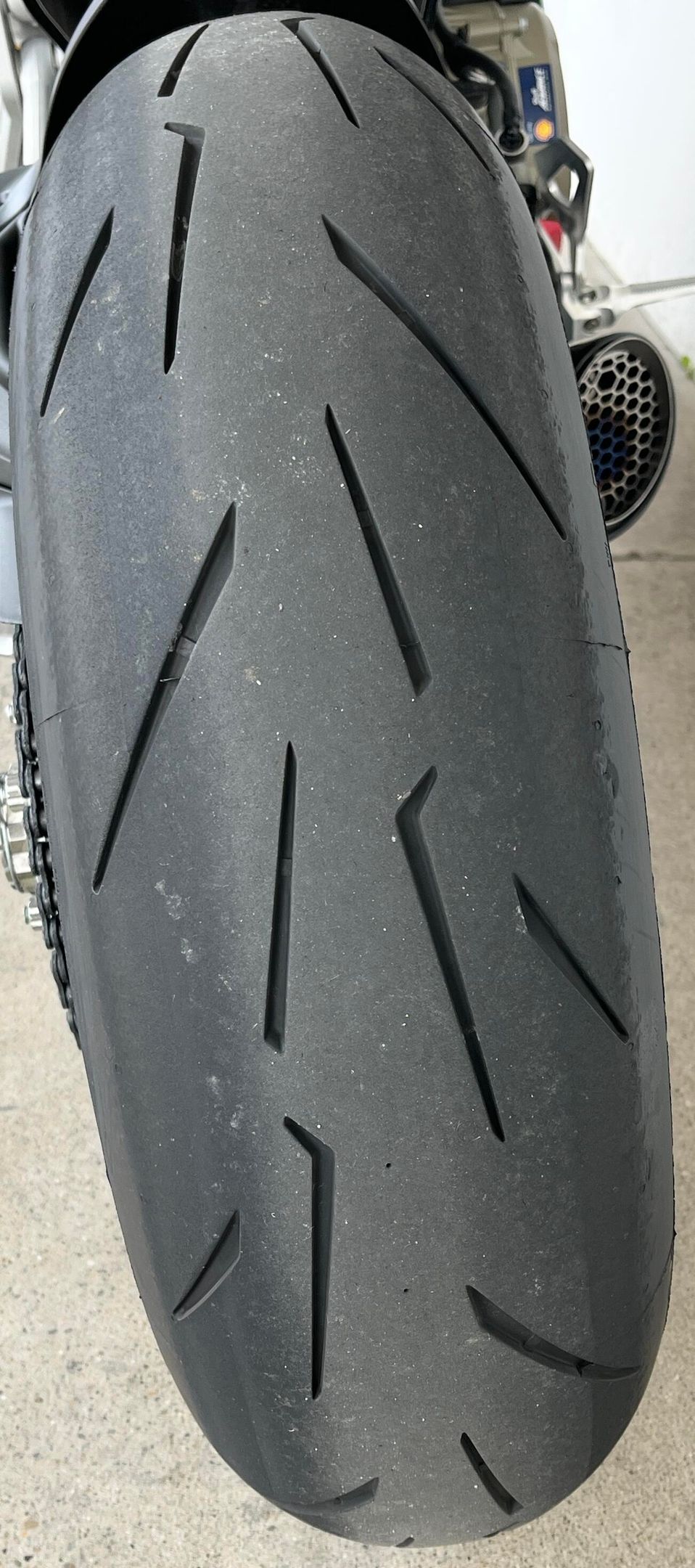

- Rear Tyre: Pirelli Diablo Rosso IV Corsa 180/60 ZR17
- Wheel Travel (Front/Rear): 120 mm (4.72 in) - 130 mm (5.12 in)
- Front Brake: 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston callipers with Bosch Cornering ABS
- Rear Brake: 245 mm disc, 2-piston calliper with Bosch Cornering ABS
- Instrumentation: Digital unit with 4,3" TFT colour display
DIMENSIONS AND WEIGHTS
- Wet weight no fuel: 190 kg (419 lb)
- Seat Height: 840 mm (33,1 in)
- Wheelbase: 1.436 mm (56,5 in)
- Rake: 24°
- Trail: 94 mm (3.70 in)
- Fuel Tank Capacity: 17 l - 4.5 gallon (US)
- Number of Seats: Single seat
EQUIPMENT
- Safety Equipment: Riding Modes, Power Modes, Bosch Cornering ABS, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Engine Brake Control (EBC) EVO, Auto tyre calibration
- Standard Equipment: Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL)*, Öhlins steering damper, Auto-off indicators, Lithium-ion battery
- Provided Equipment: Passenger seat and footpegs kit
- Ready for: Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS) and anti-theft
WARRANTY
- Warranty: 24 months unlimited mileage
- Maintenance service intervals: 12,000 km (7,500 mi)/12 months
- Valve Clearance Check: 24,000 km (15,000 mi)
EMISSIONS AND CONSUMPTION
- Standard: Euro 5
- CO2 Emissions: 139 g/km
- Consumption: 6,0 l/100 km
NOTES
- Emission Notes: Only for countries where Euro 5 standard applies.
- Notes: * Please check with your dealer product availability Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
